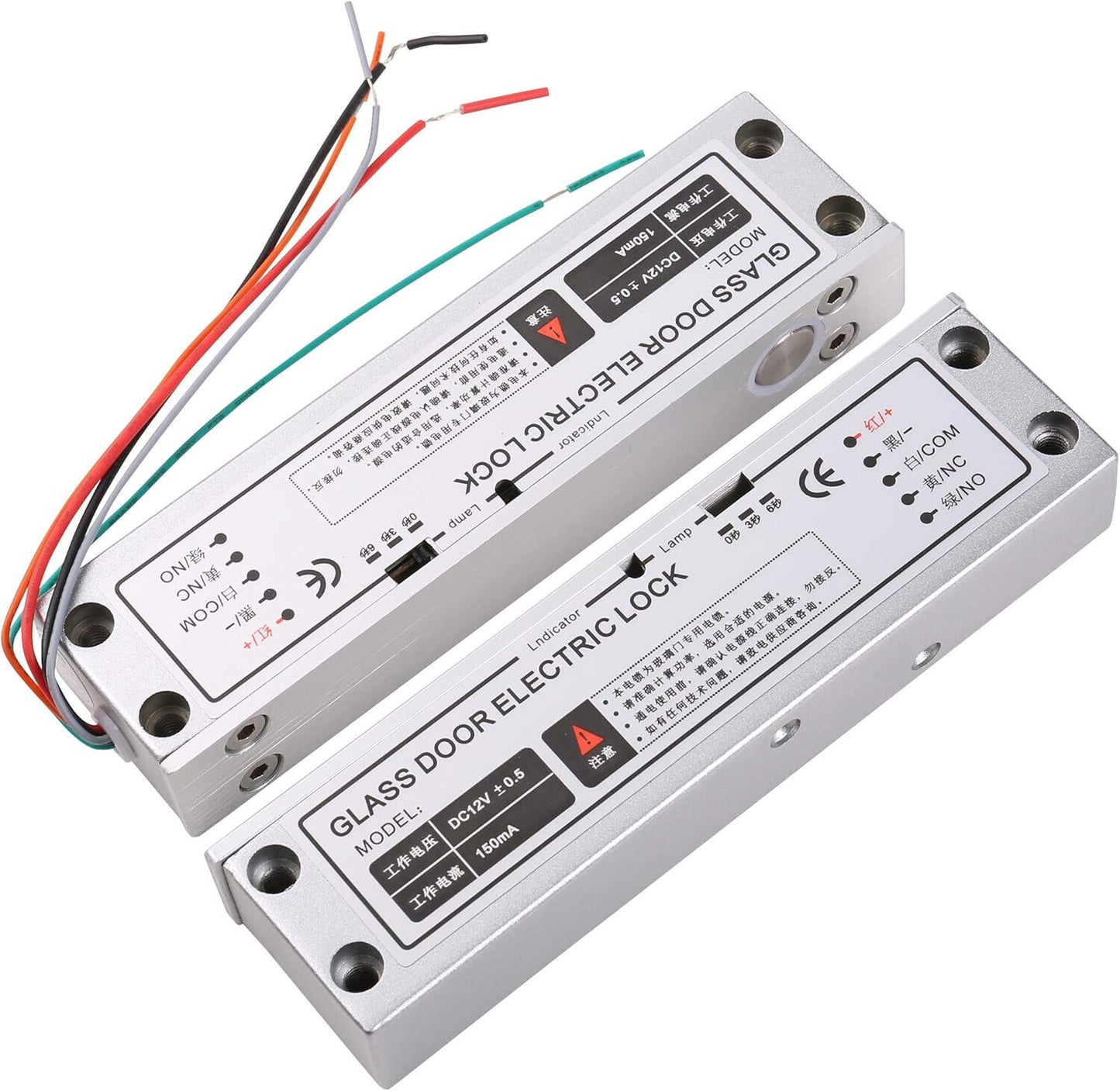

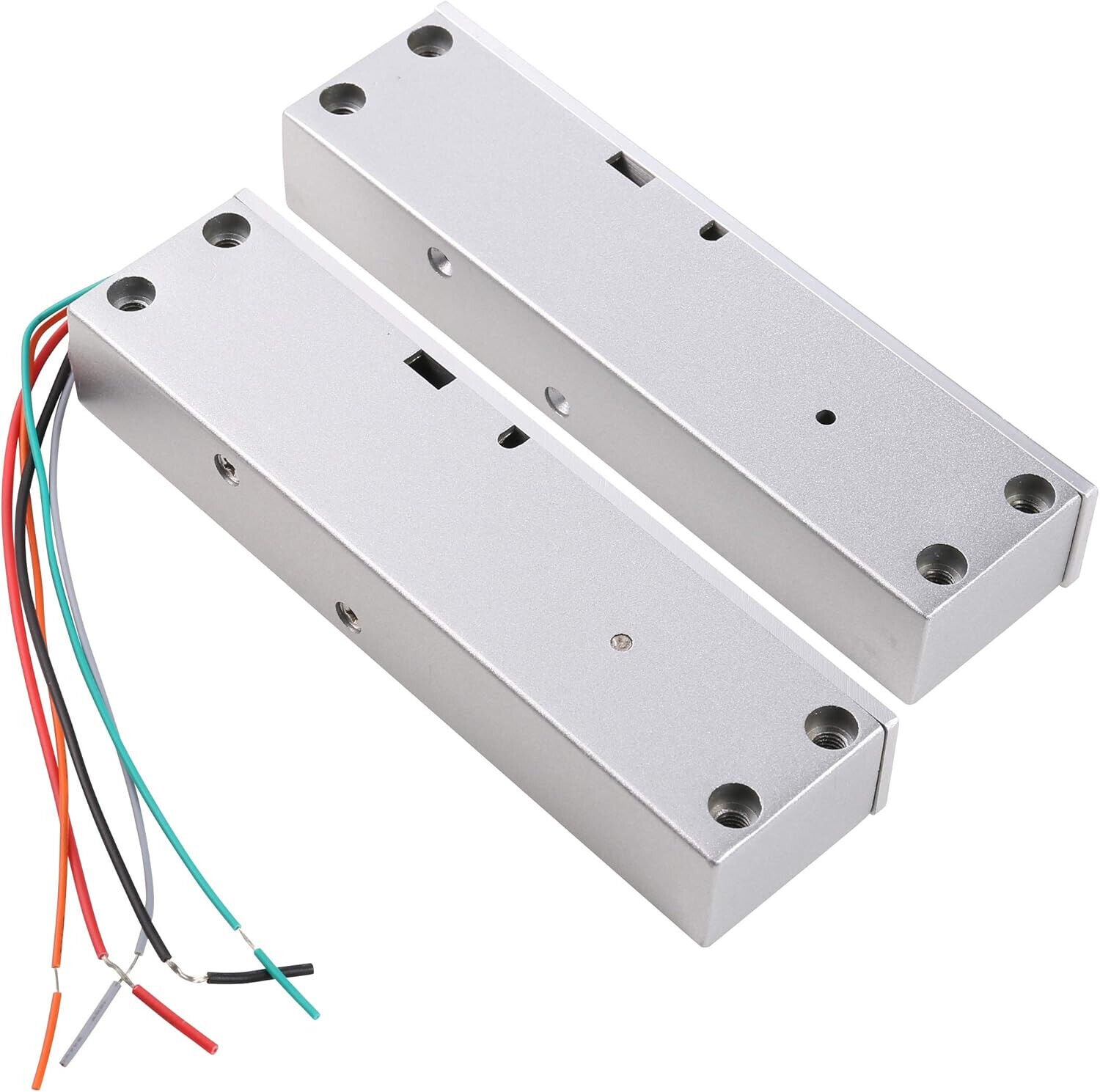

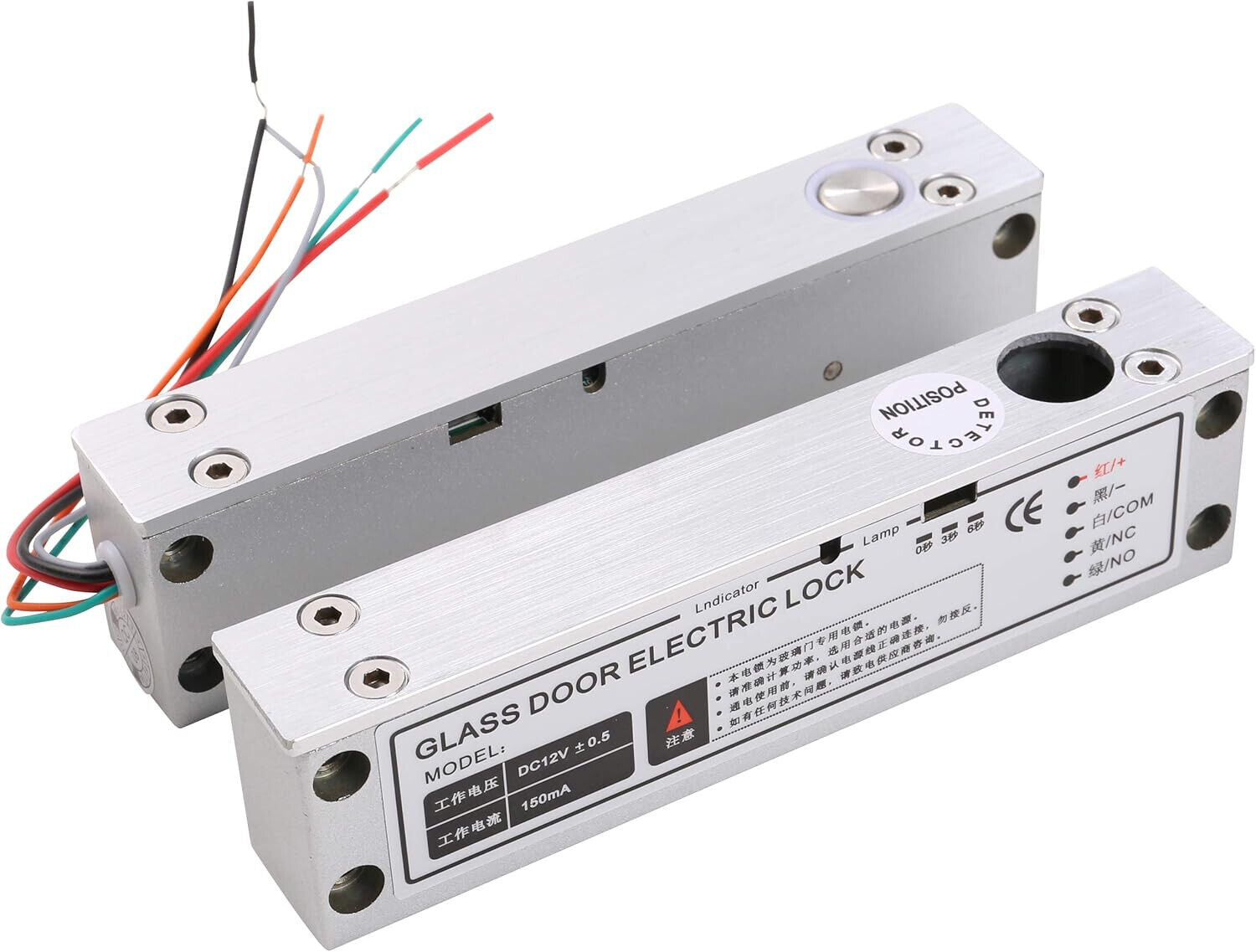

Aluminum Electric Drop Bolt Mortise Lock Security Door Access Fail Safe Unlock

UHPPOTE Fail Safe Sturdiness Electric Bolt Plug Lock with Feedback Signal for Narrow Door - Brand New

Ensure the security of your premises with the UHPPOTE Electric Bolt Plug Lock. Designed for narrow doors, this lock provides reliable and durable performance with advanced safety features, making it an excellent choice for securing wooden, metal, and fireproof doors.

Specifications:

Brand:

UHPPOTE

Lock Bolt:

16mm diameter, stainless steel 13mm throw

Net Weight:

935g

Dimensions:

148 x 24 x 39mm / 5.83 x 0.94 x 1.54 inch

Working Voltage:

12VDC

Current:

960mA (Start), 130mA (Standby)

Time Delay:

0 / 3 / 6 seconds

Induction Distance:

8mm

Door Status Output:

NC/COM

Face Plate Material:

Stainless Steel

Coil Type:

Continuous working

Features:

Low Temperature, Safe & Durable:

Special photoelectricity control and three steps current application ensure the lock operates safely without overheating.

Fail Safe, NC Mode:

The lock is in the unlocked state when power is removed, ensuring safety in case of power failure.

Auto-ReLock:

If no action is taken within 5 seconds, the lock automatically relocks.

Superior Strength:

Made from high-strength aluminum alloy and solid stainless steel bolt for maximum security.

Reverse Current Protection:

MOV provides protection against reverse current to enhance the durability of the lock.

Wide Application:

Suitable for various door types including wooden, metal, and fireproof doors.

Package Includes:

1 x Electric Lock

1 x Screw Kit

1 x Manual

This electric bolt plug lock stands out with its fail-safe mechanism, ensuring doors unlock in case of power failure, and its robust construction with stainless steel and aluminum alloy components. The added auto-relock feature and reverse current protection provide enhanced safety and reliability.

Compared to similar locks on the market, this UHPPOTE model offers superior strength, safety features, and versatility, making it a top choice for securing various door types.
